VERTICAL CRYOGENIC BULK STORAGE TANKS

Vacuum-Insulated Cryogenic Bulk Storage Tanks
for Liquid Nitrogen, Oxygen or Argon Service

VERTICAL BULK STORAGE TANKS

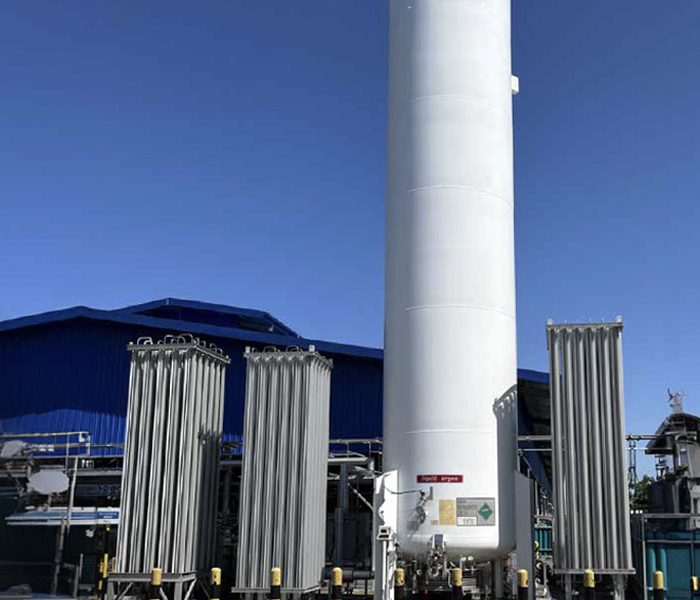

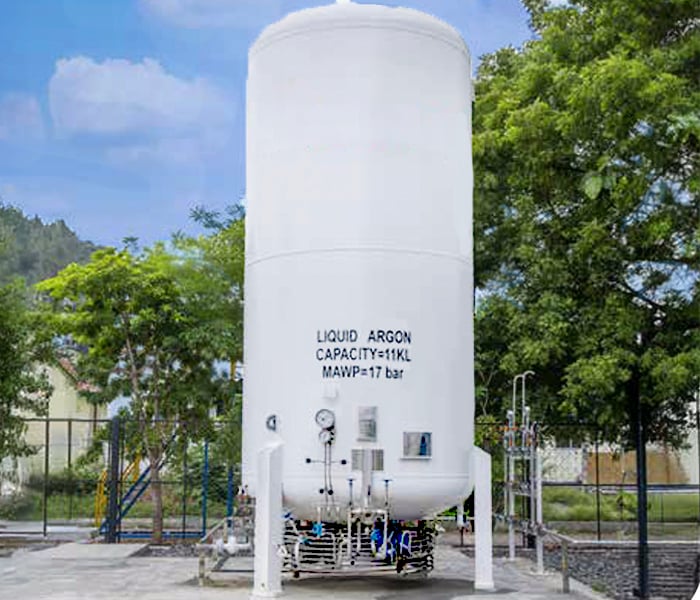

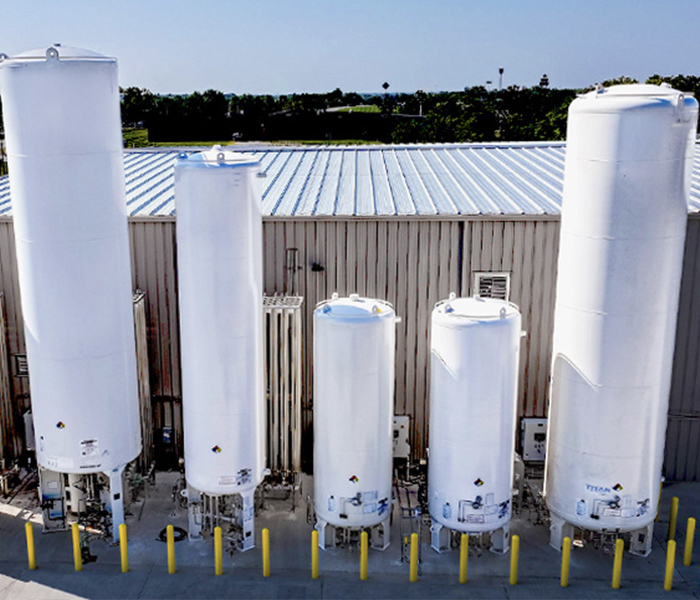

Vacuum-Insulated Vertical Cryogenic Bulk Tanks


CTR offers vertical cryogenic storage tanks that are vacuum-insulated vessels designed for efficient, space-saving bulk storage of liquid nitrogen (LIN), oxygen (LOX), argon (LAR), and other gases. Engineered in accordance with ASME Section VIII, Division 1 and available in standard pressure configurations up to 250 psig, these tanks provide dependable performance for industrial and medical gas applications. A compact vertical footprint maximizes usable site space while delivering substantial storage capacity, making them ideal for facilities with limited ground area. Optimized net usable volume and low boil-off rates help reduce product loss and improve operating efficiency over the life of the system.

Constructed with a high proportion of stainless steel to enhance durability and life-cycle value, each tank is engineered for operational reliability and structural integrity. Carefully selected components, organized piping layouts, and standardized fill and withdrawal connections simplify installation, operation, and maintenance. Mechanical level and pressure instrumentation support safe monitoring, while robust construction ensures long-term performance in demanding environments. The result is a code-compliant bulk storage solution that supports continuous gas supply, improves system uptime, and lowers total cost of ownership.

CONTACT US

Call us today to speak with one of our cryogenic bulk storage specialists at: +1 (888) 424-8101 or click to contact us below:

Contact Us





DOWNLOAD NOW:
Solutions & Services Brochure

CTR - Cryogenic Experts - Engineered Solutions & Services - Brochure
Download Now

  •

Our Auto Unattended Control panels are custom-engineered to your specifications.

Typical Specifications:

System Type: PLC-based, auto-unattended cryogenic pump control panel

Pump Compatibility: Configurable for single-pump or multi-pump installations supporting bulk plants, fill stations, and pump skids

Operational Features: Remote start/stop, automatic shutdown sequencing, emergency stop functionality, and unattended operation logic

Drive Options: Optional integrated or remote-mounted VFDs for controlled motor starting, speed control, and pump protection

Safety & Protection: Full main pump protection including permissives, fault shutdowns, and lubrication system low-level interlocks

Alarm & Diagnostics: Clear fault indication and status feedback to simplify troubleshooting and reduce response time

Control Logic: Application-specific PLC logic designed for safe, repeatable unattended operation

Integration: Interfaces with existing plant controls, remote I/O, and monitoring systems as required

Customization: Engineered to customer-defined pump types, electrical requirements, operating parameters, and site conditions

Actual physical dimensions, enclosure ratings, controls, and final
configurations are tailored to each customer application.

Cryolor - Vertical Cryogenic Storage Tank - Brochure Cover



Complete the form to download
your FREE Brochure today!






Ready to Get Started? Request a Quote Today



Call us at +1 (888) 424-8101 to spec your Vertical Cryogenic Storage Tank today—or complete the form to upload your specifications or send us an inquiry now!
